產(chǎn)品名稱：
英錐管內螺紋直接頭
產(chǎn)品系列搜索
請選擇您想要尋找的相關產(chǎn)品系列
產(chǎn)品描述

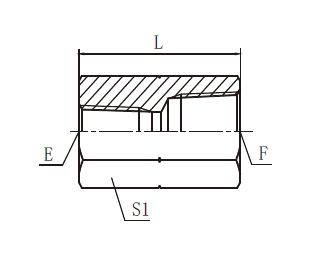

| 訂貨號 | 螺 紋 | 尺 寸 | |||||
| E | F | L | S1 | ||||
| G4-04 | Rc1/4"X19 | Rc1/4"X19 | 30 | 19 | |||
| G4-04-06 | Rc1/4"X19 | Rc3/8"X19 | 30 | 22 | |||
| G4-06 | Rc3/8"X19 | Rc3/8"X19 | 30 | 22 | |||
| G4-06-08 | Rc3/8"X19 | Rc1/2"X14 | 40 | 27 | |||
| G4-08 | Rc1/2"X14 | Rc1/2"X14 | 40 | 27 | |||
| G4-08-12 | Rc1/2"X14 | Rc3/4"X14 | 42 | 36 | |||
| G4-12 | Rc3/4"X14 | Rc3/4"X14 | 42 | 36 | |||
| G4-16 | Rc1"X11 | Rc1"X11 | 50 | 41 | |||
| G4-20 | Rc1.1/4"X11 | Rc1.1/4"X11 | 55 | 50 | |||
| G4-24 | Rc1.1/2"X11 | Rc1.1/2"X11 | 55 | 55 | |||
| G4-32 | Rc2"X11 | Rc2"X11 | 65 | 70 | |||
